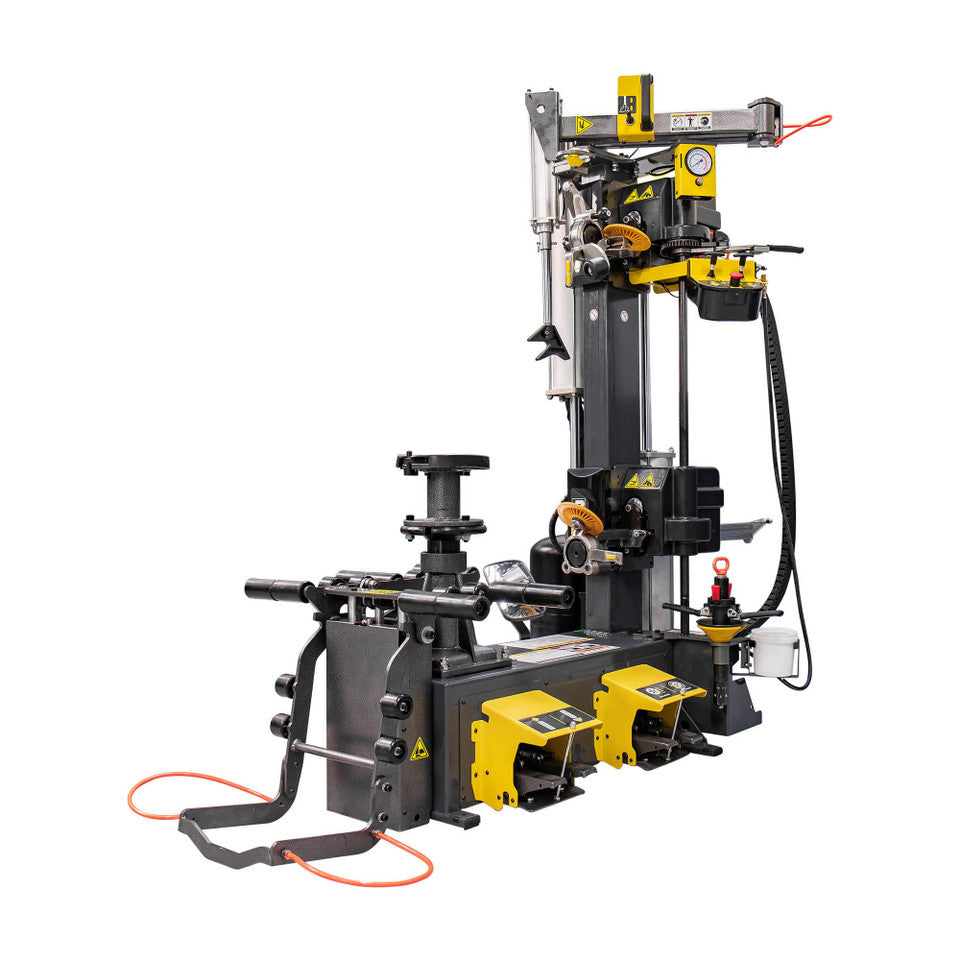

Ranger RV1 Wheel Guardian Touchless Tire Changer

The RV1 Wheel Guardian tire changer is a revolutionary wheel service offering by Ranger Products. This touchless tire machine breaks beads and swaps tires faster than virtually any other design on the market. Eliminate the manual hassle of changing tires when you go touchless!

Specifications

• Speed: Standard
• Assist Type: Single-Tower Assist
• Rim Diameter Range: 13' - 30' (330 mm - 762 mm)
• Maximum Tire Diameter: 47' (1,194 mm)
• Maximum Wheel Width: 15' (381 mm)
• Max Tire Weight: 143 lbs. (65 kg)
• RPM of Turntable: 7 - 14 turns/min
• Motor Power: 1.1 kW / 24A / NEMA 30 amp plug
• Motor Specs: 3 HP (220 VAC 50-60 HZ)
• Air Supply Requirements: 140 -165 psi (10 -11 bar)
• Air Consumption: 1 SCFM / 27 L/Min
• Overall Width: 34' (864 mm)
• Overall Height: 73' (1,854 mm)
• Overall Depth: 71' (1,803 mm)
• Mount / Demount Tool: Steel-Alloy with Polymer Guards / Leverless
• Clamping Type: Center Post with Quick Clamp

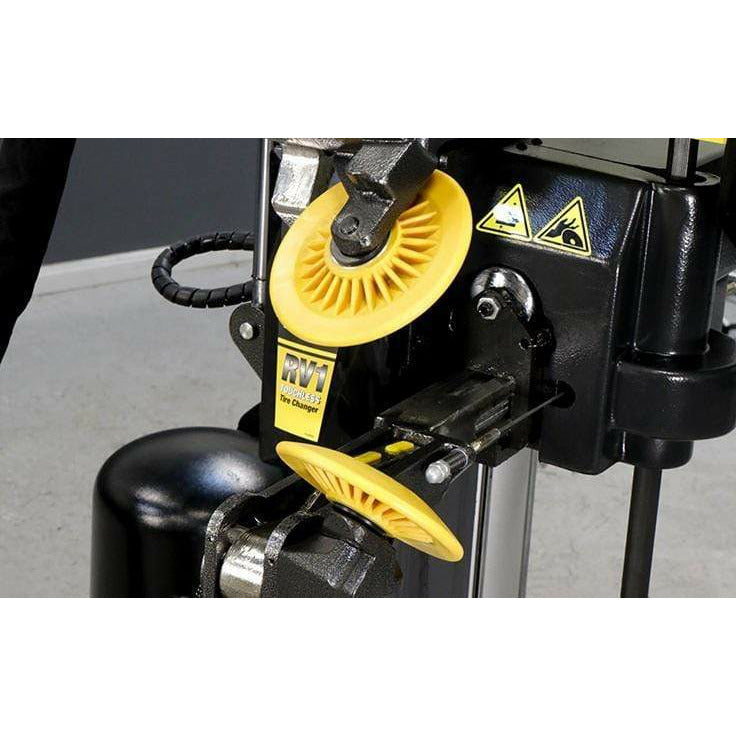

• Bead Loosening Type: Upper / Lower Roller
• Shipping Weight: 1,004 lbs. (455 kg)
• Shipping Dimensions: 26" x 71" x 78" (660 mm x 1,803 mm x 1,981 mm
