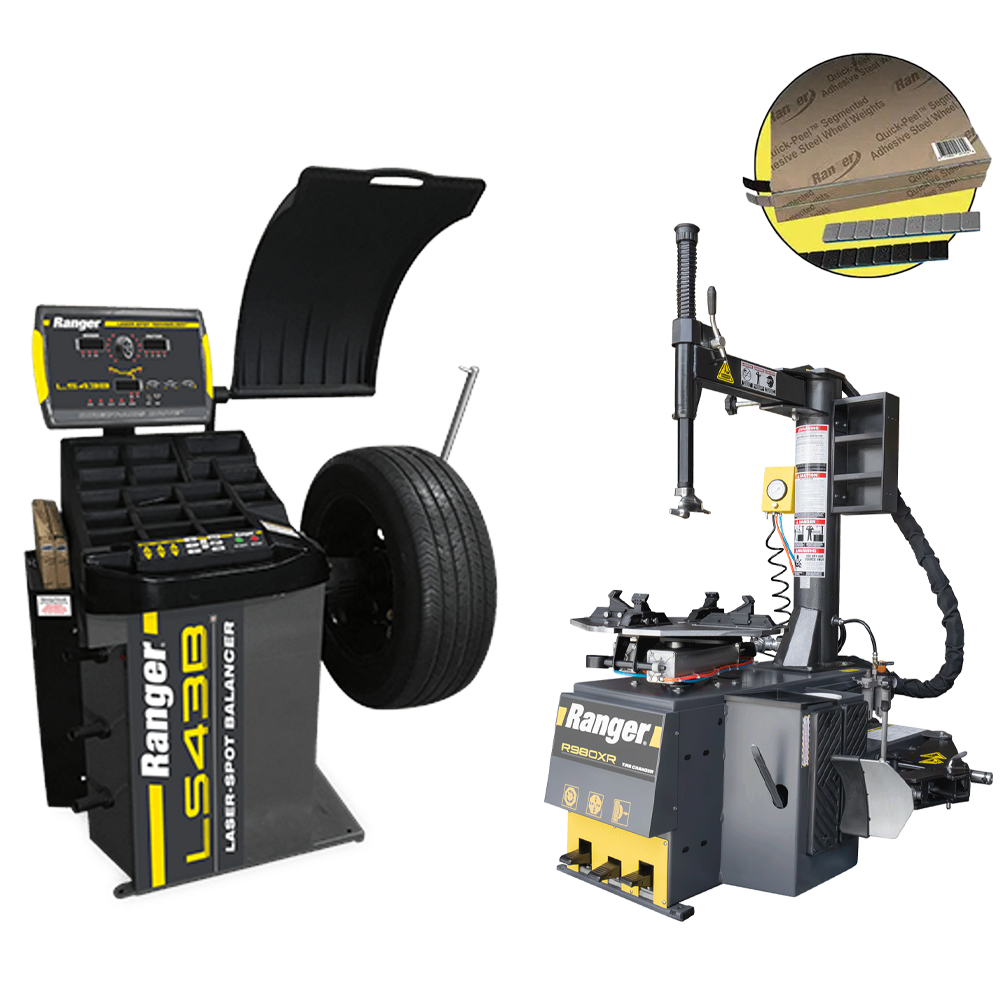

Ranger R980XR Tire Changer + LS43B Wheel Balancer + Tape Weight Rolls

Ranger R980XR Tire Changer + LS43B Wheel Balancer + Tape Weight Rolls

Regular price $7,200.00 USD
Regular price Sale price $7,200.00 USD
Sale Sold out
Shipping calculated at checkout.

Included in this Package Deal

R980XR - QTY 1

Tire Changer / Swing Arm / 30' Capacity

To get the space-saving benefits of the Ranger R980AT without the addition of an assist-tower, the R980XR is a perfect alternative tire changer. It's perfect for general repairs on a wide range of tires, including racing tires, pickup trucks and tire beads that won't put up much of a fight.

LS43B - QTY 1

Wheel Balancer / 3D Quick-Touch Laser-Spot / 36 mm Shaft

The Ranger LS43B laser wheel balancer optimizes wheel weight placements with exclusive Laser-Spot technology. Laser lines clearly indicate outboard and inboard weight placements for incredible balances within hundredths of an ounce. Wheels that are laser-balanced drive like new!

Tape Wheel Weights / Combo - QTY 1

Adhesive Steel Wheel Weights / Combo / ROLLS (1400 pcs. - 0.25 oz. - 1/2' Wide - 22 lbs.)

This combo Quick-Peel adhesive steel wheel weights are an effective and environmentally friendly way to quickly balance wheels using as little weight as possible.

Specifications

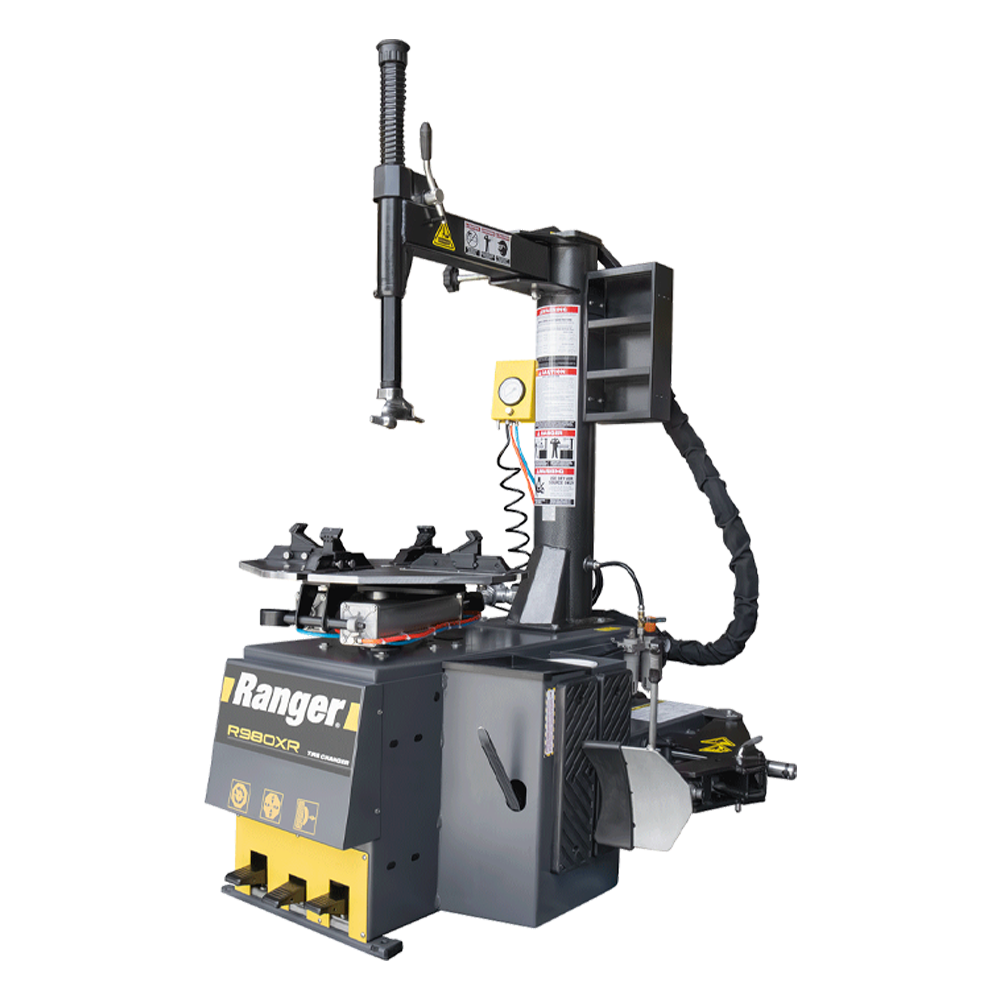

Ranger R980XR Tire Changer

  • Style: Fixed Tower Design
  • Assist Type: Single-Tower Assist
  • Speed: Standard
  • Motor: 3 HP (220 VAC 50-60 HZ)
  • Drive System Type: Electric / Air
  • Air Requirement: 140-165 PSI (10-11 BAR)
  • Wheel Clamping Method: 4 Clamps - Internal / External
  • Table Clamping System: Dual Pneumatic Cylinders
  • Bead Breaking System: Pneumatic Blade / Dual
  • Tower Design: Rigid / Fixed
  • Power Assist Towers: N/A
  • Bead Seating System: Turbo Blast / Bead Seating
  • Internal Rim Clamping Capacity: 10" – 30" (254 mm - 762 mm)
  • External Rim Clamping Capacity: 9" – 28" (229 mm - 711 mm)
  • Turntable Tire Width Capacity (Mounting): 4" – 18" (102 mm – 457 mm)
  • Bead Breaker Tire Width Capacity (Demounting): 1.5" – 13" (38 mm – 330 mm)
  • Maximum Tire Diameter: 50" (1,270 mm)
  • Shipping Weight: 716 lbs. (324 kg)
  • Shipping Dimensions: 43" x 51" x 44" (1,092 mm x 1,295 mm x 1,117 mm)

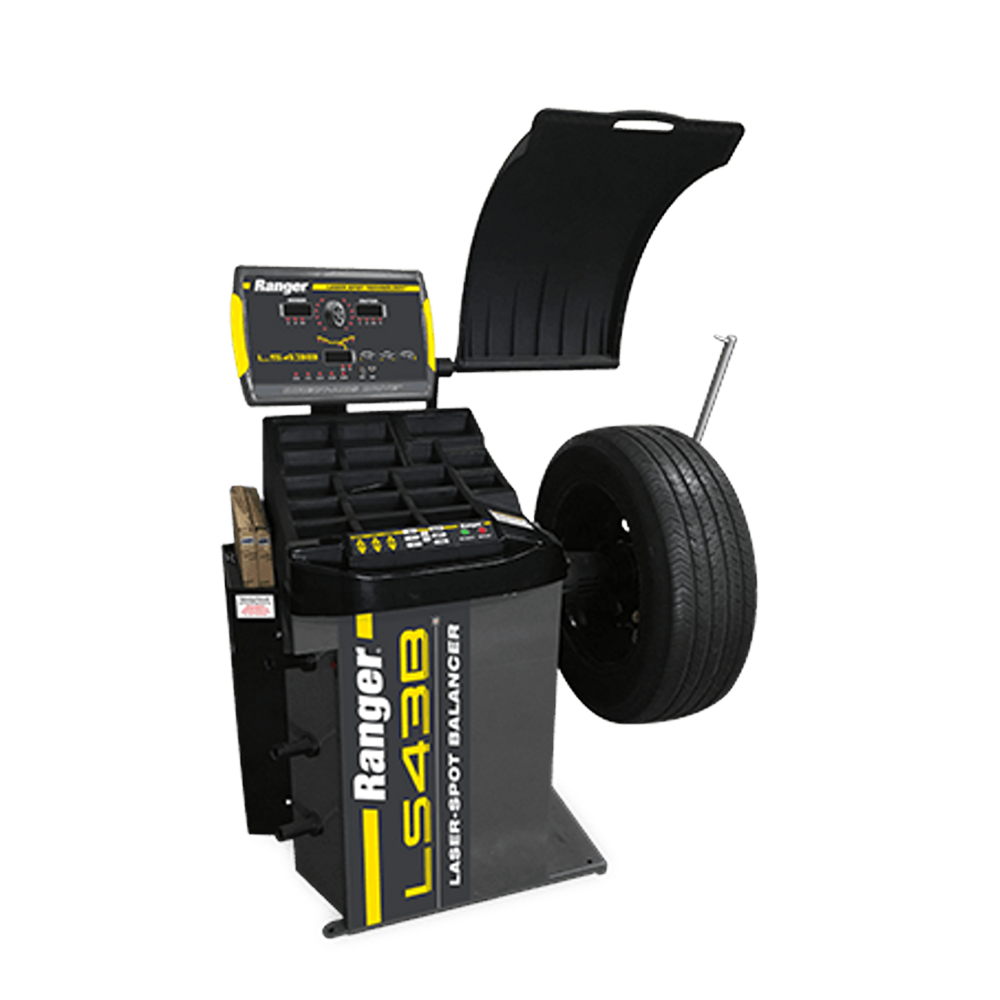

Ranger LS43B Wheel Balancer

  • Style: Auto & Light Truck
  • Data Entry: Automatic
  • Maximum tire diameter: 47' (1,194 mm)
  • Max tire weight: 145 lbs. (65 kg)
  • Max. wheel diameter: 10' - 30' (254 mm - 672 mm)
  • Wheel width capacity: 2' - 18' (51 mm - 457 mm)
  • Balancing increments: 0.25 or 0.01 oz.
  • Balancing speed: 180 RPM
  • Accuracy: +/- 1 gram (.035 oz.)
  • Working temperature: 27°F (-5°C) – 82°F (50°C)
  • Drive system: Belt Drive
  • Balancing modes: Dynamic / Static / 3-Alloy
  • Top positioning weight locator: Standard
  • Inside & outside measuring: Standard
  • Millimeter / inches selection: Standard
  • Ounce / gram selection: Standard
  • Wheel offset distance setting: Manual
  • Self-calibration function: Standard
  • Auto start: Standard
  • Wheel spin braking: Automatic / Electronic
  • Wheel holding manual brake pedal: Standard
  • Centering cones included: 3 Standard / 1 truck
  • Wheel callipers: Standard
  • Rear cone mount spring: Standard
  • No-mar rear cone mount pressure cup: Standard
  • Quick-release & mount hub nut: Standard
  • Shipping Weight: 418-lbs. (189 kg)
  • Shipping Dimensions: 44" x 30" x 46" (1,117 mm x 762 mm x 1,168 mm)
