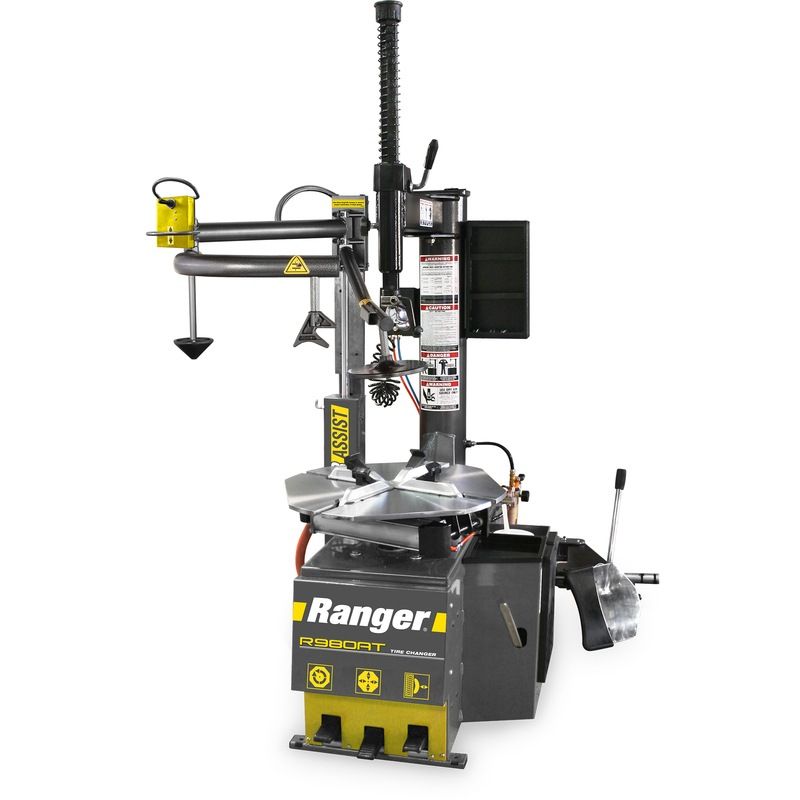

Ranger R980AT Swing-Arm Tire Changer Single Tower Assist
Ranger R980AT Swing-Arm Tire Changer Single Tower Assist
Couldn't load pickup availability
The R980AT saves an impressive amount of space, making it ideal for small or cramped tire shops. Because it utilizes a swing-arm design and doesn't tilt back, it can be installed flush against a wall. An assist tower will help with stiffer sidewalls, run-flats and other low-profile tires. 30' clamping ability.
Power Assist Perfection + Tire Changer Protection
When you need a tire changer that will get the job done on virtually all commuter and passenger vehicles, including pick-up trucks and race cars, the space-saving R980AT might be exactly what you need. It features an assist tower to help unseat stiff, low-profile tire beads and run-flats. A centering cone holds the bead in the drop-center, further helping protect the tire during external clamping procedures. This model is a perfect addition to full-service repair bays and general tire shops because it accommodates a wide range of tire-and-wheel combinations.
Specifications
- Style: Fixed Tower Design
- Assist Type: Single-Tower Assist
- Speed: Standard
- Motor: 3 HP (220 VAC 50-60 HZ)
- Drive System Type: Electric / Air
- Air Requirement: 140-165 PSI (10-11 BAR)

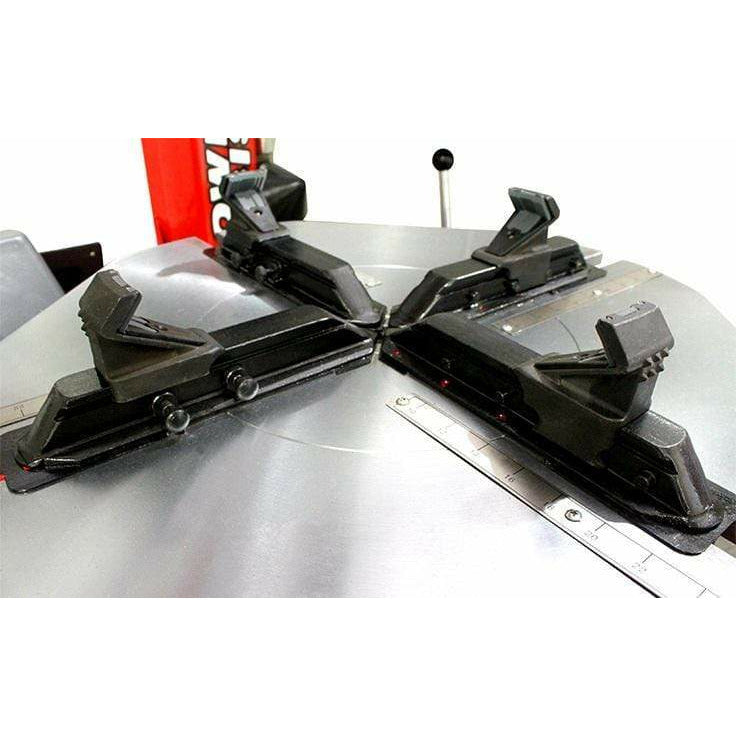

- Wheel Clamping Method: 4 Clamps - Internal / External
- Table Clamping System: Dual Pneumatic Cylinders
- Bead Breaking System: Pneumatic Blade / Dual
- Tower Design: Rigid Fixed / Swing Arm
- Power Assist Towers: Single Assist Tower
- Bead Lifting Roller(s): Single Lifting Roller
- Bead Seating System: Turbo Blast / Bead Seating
- Internal Rim Clamping Capacity: 10” - 30” (254 mm - 762 mm)
- External Rim Clamping Capacity: 9” - 28” (229 mm - 711 mm)
- Turntable Tire Width Capacity (Mounting): 4” - 18” (102 mm - 457 mm)
- Bead Breaker Tire Width Capacity (Demounting): 1.5” – 13” (38 mm – 330 mm)
- Maximum Tire Diameter: 50” (1,270 mm)
- Shipping Weight: 904 lbs. (410 kg)
- Shipping Dimensions: 51'' x 45'' x 73'' (1,295 mm x 1,143 mm x 1,854 mm
