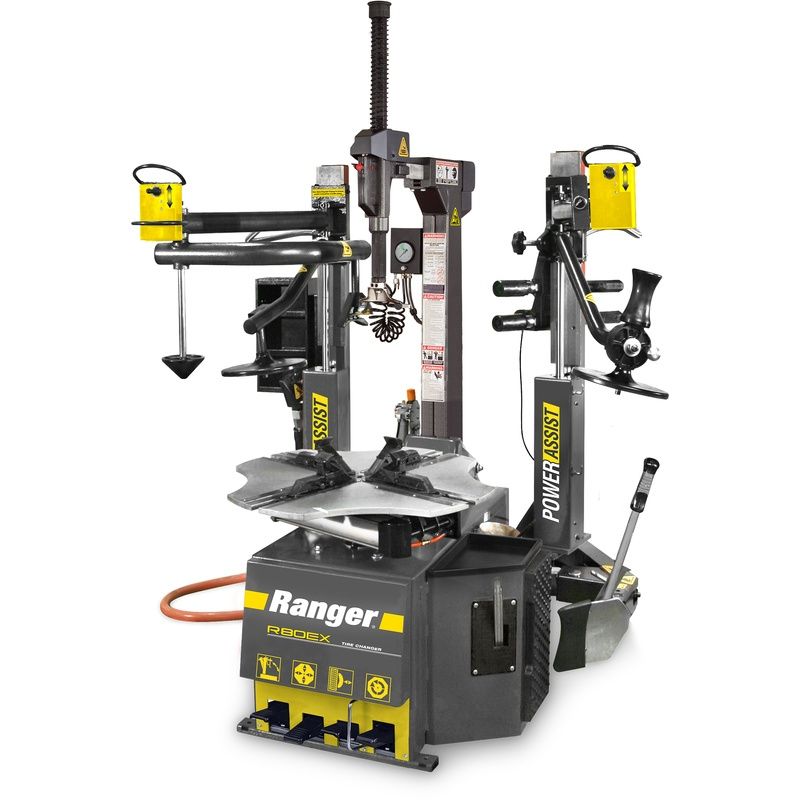

The R80EX tire changer features a dual-assist, tilt-back tower design, so it's outfitted with the industry's best and most powerful tools. With the R80EX, you get the classic, rugged reliability Ranger is known for, plus dozens of standard features.
Specifications
-
Style: Tilt-Back Tower Design
-
Assist Type: Dual-Tower Assist
-
Speed: Standard
-
Motor: 3 HP (220 VAC 50-60 HZ)
-
Drive System Type: Electric / Air
-
Air Requirement: 110-175 PSI (8-12 BAR)
-

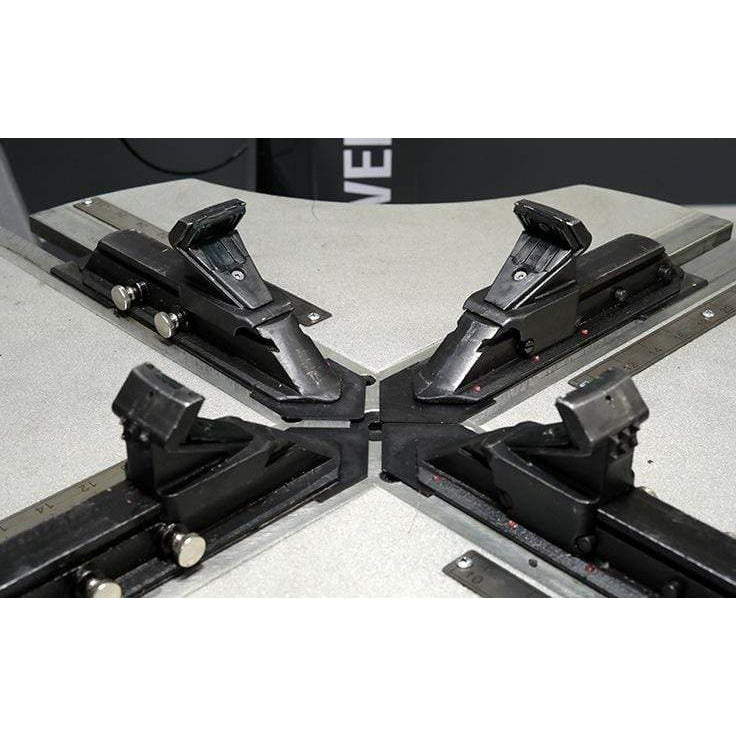

Wheel Clamping Method: 4 Clamps - Internal / External
-
Table Clamping System: Dual Pneumatic Cylinders
-

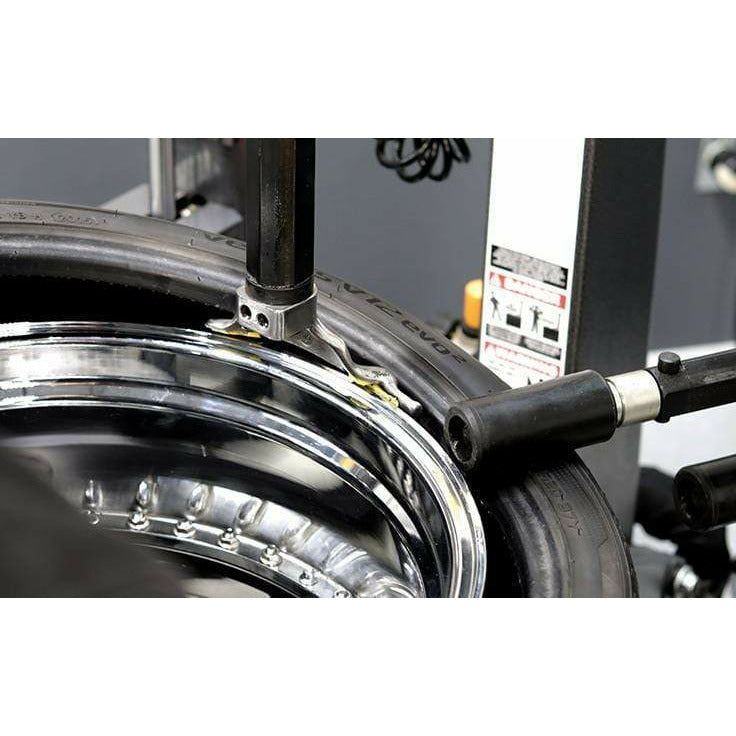

Bead Breaking System: Pneumatic Blade
-
Tower Design: Tilt-Back
-

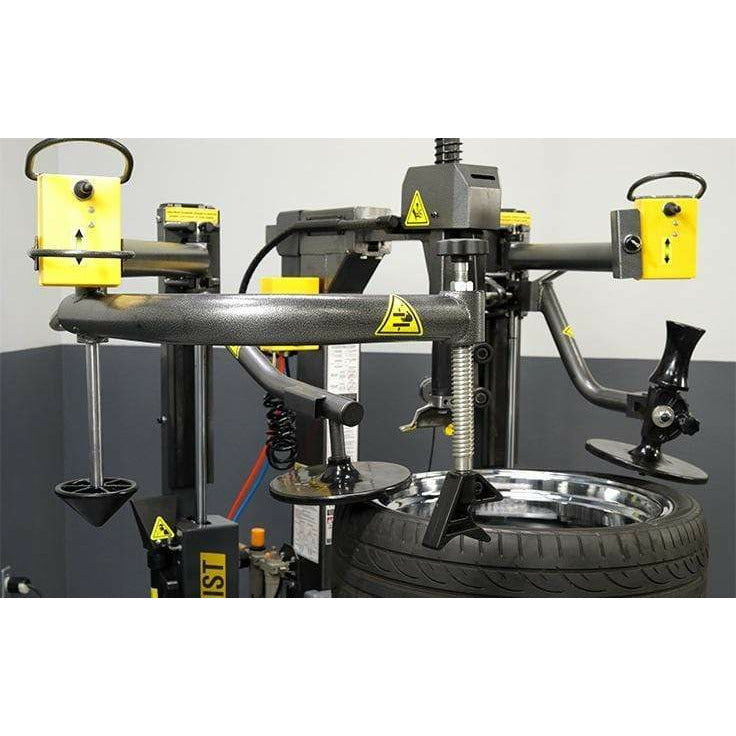

Power Assist Towers: Dual / Left & Right
-
Bead Seating System: Turbo Blast / Bead Seating
-
Internal Rim Clamping Capacity: 13" - 34" (305 mm - 864 mm)
-
External Rim Clamping Capacity: 10" - 30" (254 mm - 762 mm)
-
Bead Breaker Tire Width Capacity (Demounting): 1.5" - 18" (38 mm - 457 mm)
-
Maximum Rim Width: 15" (381 mm)
-
Maximum Tire Diameter: 47" (1,194 mm)
-
Shipping Weight: 1,184 lbs. (537 kg)
-
Shipping Dimensions: 45" x 53" x 73" (1,134 mm x 1,346 mm x 1,854 mm)
