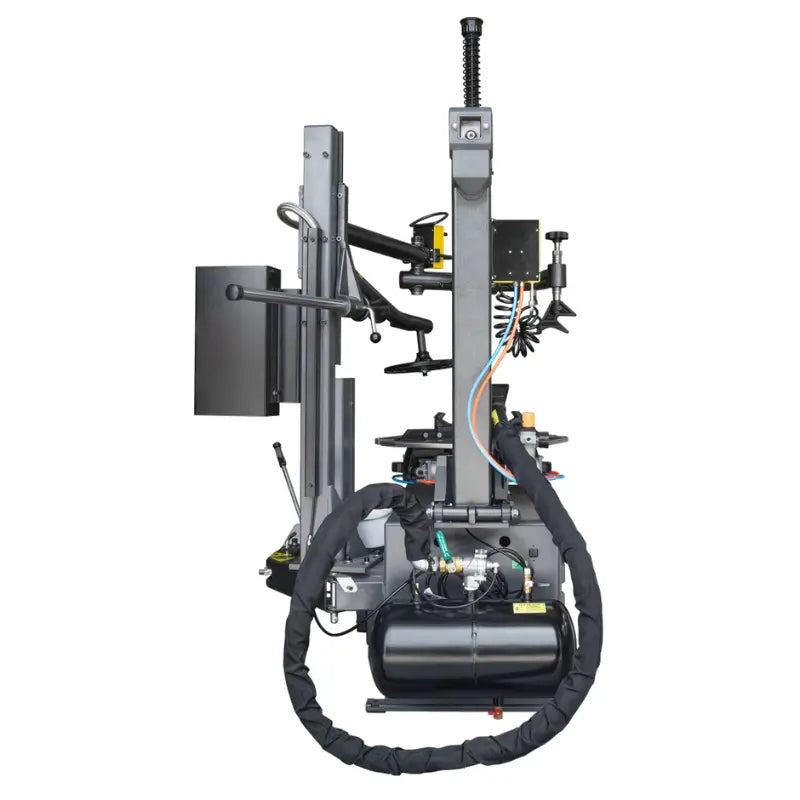

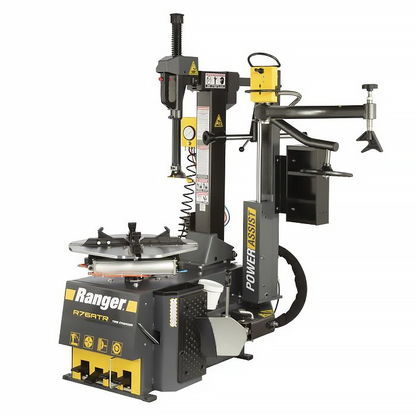

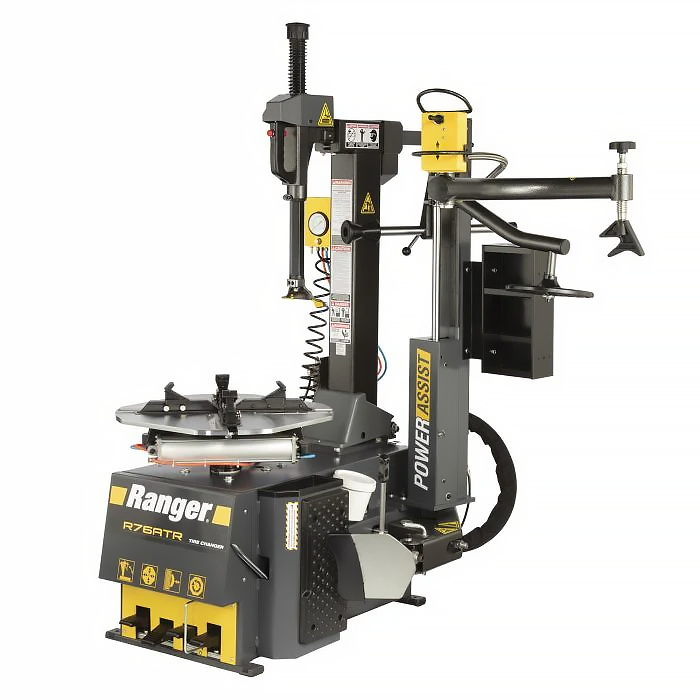

Ranger R76ATR Tilt Back Tire Changer Right-Tower Single Assist
Ranger R76ATR Tilt Back Tire Changer Right-Tower Single Assist
Regular price
$5,500.00 USD
Regular price
Sale price
$5,500.00 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
The R76ATR is a brilliant time-saver. Its tilt-back tower allows you to operate different tire-and-wheel combos without adjusting the duck head, and the swing-arm design with tower assist ensures stiff sidewalls are never a problem.
Specifications
- Style: Tilt-Back Tower Design
- Assist Type: Single-Tower Assist
- Speed: Standard
- Motor: 3 HP (220 VAC 50-60 HZ)
- Drive System Type: Electric / Hydraulic
- Air Requirement: 110-175 PSI (8-12 BAR)
- Wheel Clamping Method: 4 Clamps - Internal / External
- Table Clamping System: Dual Pneumatic Cylinders
- Bead Breaking System: Adjustable Pneumatic Blade
- Tower Design: Tilt-Back
- Power Assist Tower(s): Single / Right-Side
- Bead Lifting Roller(s): Single / Right-Side
- Upper Bead Assist Roller: Single / Right-Side
- Vertical Shaft / Tool Head: Pneumatic / Locking
- Internal Rim Clamping Capacity: 10" – 30" (254 mm - 762 mm)
- External Rim Clamping Capacity: 9" – 28" (229 mm - 711 mm)
- Turntable Tire Width Capacity (Mounting): 4" – 18" (102 mm – 457 mm)
- Bead Breaker Tire Width Capacity (Demounting): 1.5" – 16" (38 mm – 406 mm)
- Maximum Tire Diameter: 43" (1,092 mm)
- Shipping Weight: 970 lbs. (440 kg)
- Shipping Dimensions: 45" x 73" x 51" (1,143 mm x 1,854 mm x 1,295 mm)
